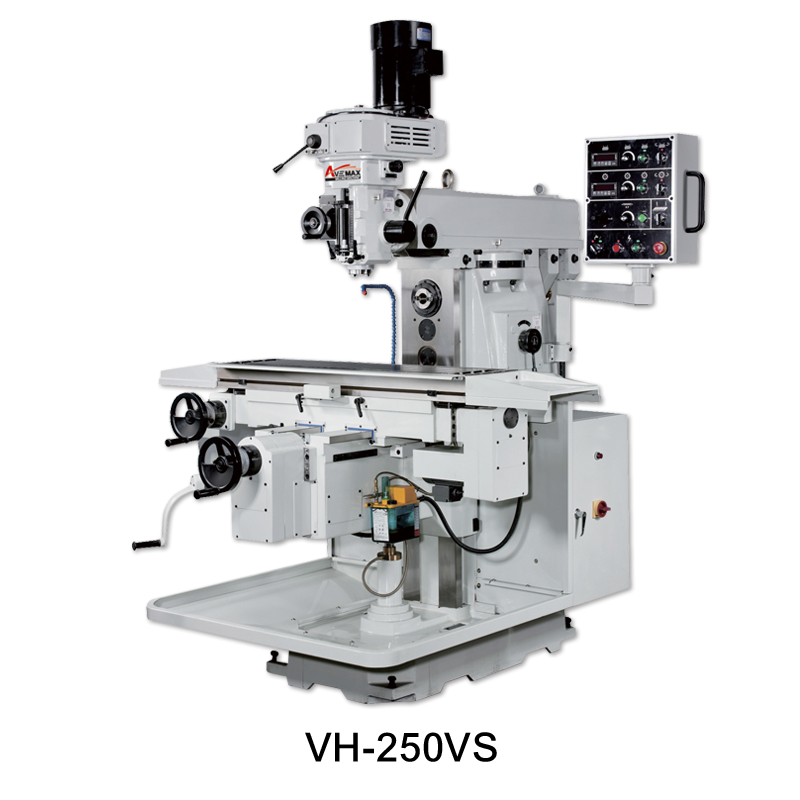

VH-250VS

  • Meehanite casting with annealing and stress relieving treatment.
  • Rubber wipers installed on all slidways (column, ram and knee).
  • Square way designed on Y and column slidways.
  • Longer saddle ensures the working stability.
  • Turcite-B coated on X and Y ways.
  • Precision ballscrews on X and Y ways.
  • 5HP heavy duty head , and Hi-Low speed changed by gear transmission (without timing belt).
  • Inverter or servo motor on X and Y with variable speed change , both offer high working efficiency.
  • Electromagnetic clutch on X and Y , protecting workpieces or tools from damage.



Model Specification:

Description 5HP horizontal spindle motor XY inverter motor XY servo motor

V250-FP

  Ο

V250VS-FP

  Ο

V250-SP

    Ο

V250VS-SP

    Ο

VH250VS-FP

Ο Ο

VH250VS-SP

Ο Ο



Specification VH-250VS
Table
Table Size (L x W) 1270x305 mm
T slots (NumberxWidthxInterval) 3x16 mm
Longitudinal travel (Manual) Nil
Longitudinal travel (Auto feed) 900 mm
Cross travel 400 mm (Manual)
Vertical travel 450 mm (Manual)/ 389 mm (Auto)
Table load capacity 600 kgs
Ram travel 575 mm
Vertical spindle
Spindle speed Step head Nil
Variable speed head 50HZ Low:62.5~416 High:458~3000
60HZ Low:75~500 High:550~3600
Taper NST#40
Quill stroke 140mm
Quill stroke 0.035/0.007/0.14 mm/rev
Head swiveling (R&L) 45°
Spindle nose to table surface 130-555 mm (Opt. 650mm)
Spindle center to column front surface 185-685 mm
Horizontal spindle
Spindle speed 50HZ low: 40~200 High: 200~980
60HZ low: 48~240 High: 240~1180
Taper NST#40
Feed Rate
XY cutting feed 1500 mm/min
XY rapid traverse 3000 mm/min
Motor
Spindle motor Vertical spindle 5HP inverter motor
Horizontal spindle 5HP inverter motor
XY axes motor 1/2HP
Lifting motor 1HP
Coolant pump 1/6
Overall height 2550 mm
Overall depth 2150 mm
Overall width 1970 mm
Net weight 2500 kgs

We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
