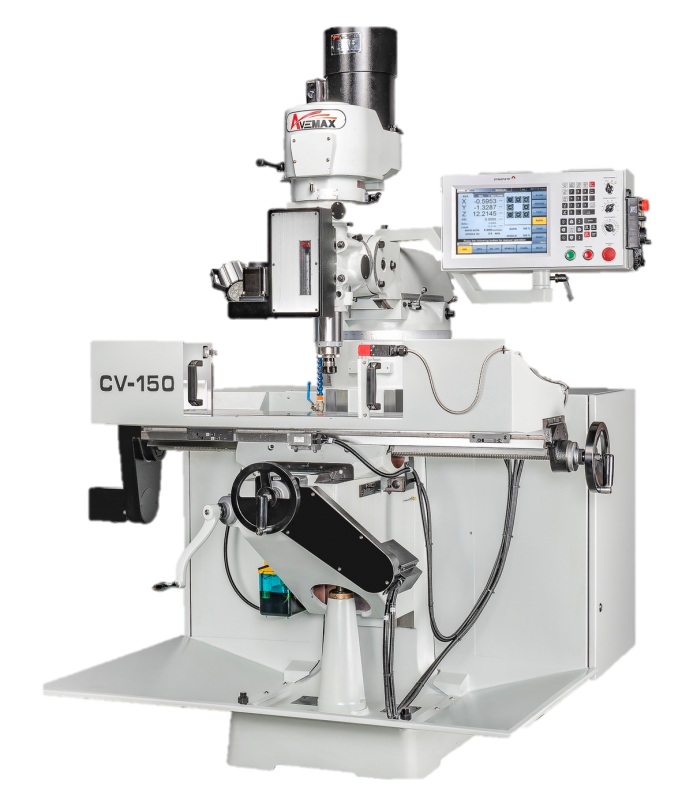

CV-150
- Spindle material is SCM415 full hardened through carbonizing heat treatment
- NST#30/R8 spindle with 3HP variable speed motor (inverter motor option is available).
- Spindle quill drive box is transmitted by ballscrew for better precision.
- Essential castings are made of high grade of Meehanite cast iron, which has been stressed and relieved to provide a rigid machine structure.
- Standard with 9” X 49” table with hardened and ground.
- Table T-slot is precision ground to exact tolerance.
- Precision ballscrews are equipped on X&Y axes.
- X and Y slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface.
- 1:2 ratio timing belt pulleys on XY axes to increase drive torque.
| Specification | CV-150 |
| Table size | 230 × 1245mm |
| T-slot (NumberxWidth) | 3 × 16mm |
| Max.table load | 280mm |
| Longitudinal travel (X axis) | 770mm |
| Cross travel (Y axis) | 290mm |
| Vertical travel of knee (Z axis) | 370mm |
| Quill travel | 110mm |
| Ram travel | 390mm |
| Spindle nose to table surface | 80~450mm |
| Spindle center to column surface | 125~515mm |
| Over swivel on turret | 360° |
| Head swivel (R&L) | 45° |
| Head tilt (up&down) | 45° |
| Spindle taper | NST#30/R8 |
| Spindle speed | 5000rpm |
| Spindle motor | 3HP inverter motor |
| Quill feeds | 0.04~0.08~0.14mm |
| XYZ axes feed rate | 0~3M |
| Rapid traverse XYZ axes | 5M |
| Overall height | 2205mm |
| Overall depth | 1770mm |
| Overall width | 2530mm |
|
Net weight |
1300Kgs |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
