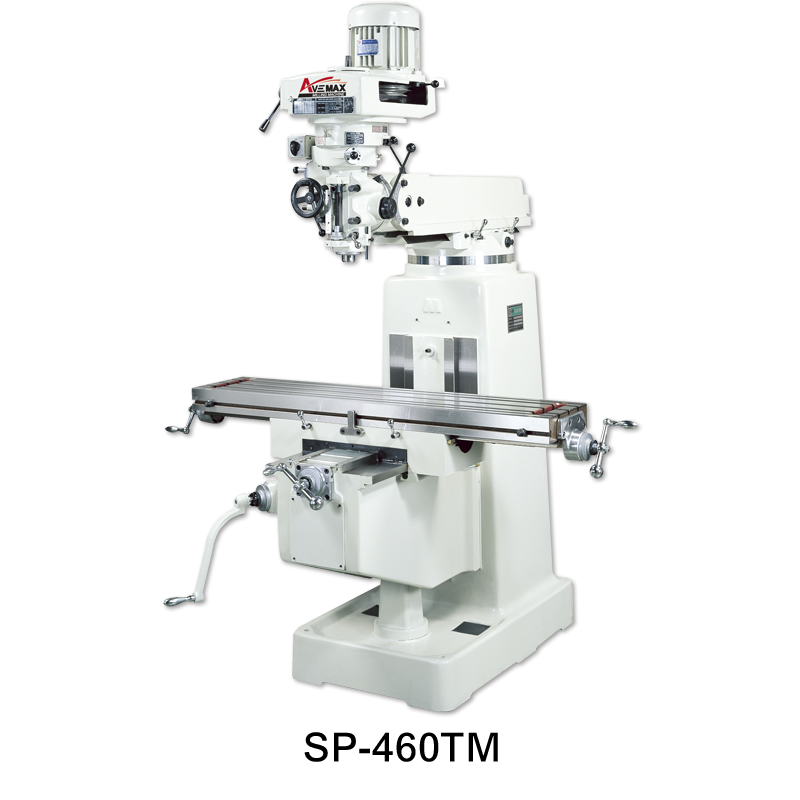

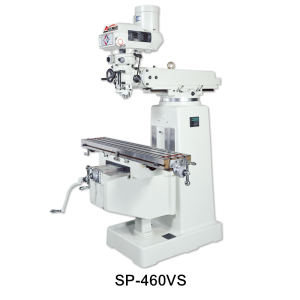

SP-460TM / SP-460VS
- 10” x 54” table.
- Hardened and ground on X Y slideways
- Hardened and ground table with ground T-slots.
- 1-1/2”(38mm) diameter lifting screw.
- Leveling screws and pads on base.
- Turcite-B on X Y ways, slidways and gibs.
- R8 (NST#30) spindle material SCM415 (SAB4115) with hardened and ground.
- Electroless nickel-phosphorus plating process on X and Y.
- Highly improved vari-speed head.
- Strict with hand scraping for high precise accuracy.
Optional: 5000 RPM EVS spindle head
- 3HP inverter motor with 3HP inverter drive
- For: 2TM/2VS, 4K, 450TM/VS, SP-150, SP-460, SP-500 (NST#30 or R8 spindle)
| Specification | SP-460TM / SP-460VS | |
| Table size | 254x1372 mm (10”x54”) | |
| T-slot of table (Q’ty x size) | 3x16 mm (3x0.63”) | |
| Longitudinal travel (X axis) | Manual | 870 mm(34”) |
| Auto | 775 mm (30.5”) | |
| Cross travel (Y axis) | 390 mm (15.35”) | |
| Vertical travel of knee (Z axis) | 390 mm (15.35”) | |
| Ram travel | 560 mm (22”) | |
| Quill travel | 127 mm(5”) | |
| Spindle taper | NST#30/R8 (Opt. NST #40) | |
| Spindle to table nose | 100~506 mm(4”~20”) | |
| Spindle center to column | 159~719 mm(6.25”~28.3”) | |
| Over swivel on turret | 360゜ | |
| Head swivel (R&L) | +/-45゜ | |
| Head tilt (up&down) | +/-45゜ | |
| Spindle motor | 3HP | |
| X axis motor | Option: Power feed | |
| Lifting motor | Nil | |
| Quill feed | 0.04 ~ 0.08 ~ 0.14 mm / rpm (0.0015” ~ 0.003” ~ 0.006”) | |
| Spindle speed | Step head | 50Hz: 66~2270rpm 60Hz: 80~2720rpm |
| Variable speed head | 50Hz: 50~3750rpm 60Hz: 60~4500rpm |
|
| Overall height | 2011mm (79”) | |
| Overall depth | 2087mm (82”) | |
| Overall width | 1840mm (72.4”) | |
| Net weight | 1300Kgs (3000lbs) | |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
