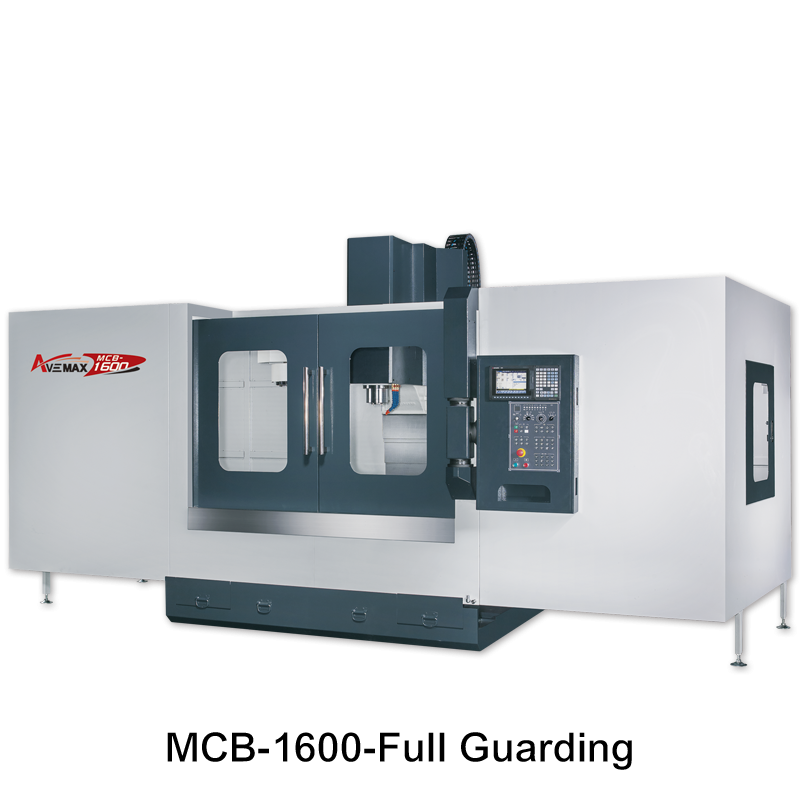

MCB-1600

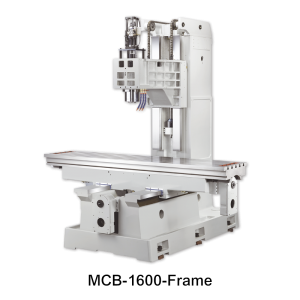

  • VMC rigid headstock moves directly on column without extra bracket to ensure heavy cutting accuracy.
  • BT40 spindle is fully balanced for low chatter and high performance machining.
  • All essential castings are made of high grade of Meehanite cast iron, which has been stressed and relieved to provide a rigid machine structure.
  • All three axes are driven by high precision ballscrews with double nuts which leads less play and backlash.
  • Dovetail design on X, box way design on YZ.
  • All slideways have been hardened and ground for longer longevity. It also provides high rigidity for heavy and discontinuously cutting.
  • All contacting surfaces are precisely hand scrapped.
  • YZ slideways are protected by high grade steel covers.
  • 1:2 ratio timing belt pulleys on XYZ axes to increase drive torque and save the cost of axes motors.
Specification MCB-1600
Table size 2200 x 500mm
T slot of spindle (number x width) 5 x 18mm
Longitudinal travel 1600mm
Cross travel 700mm
Vertical travel 700mm
Table load capacity 1000Kgs
Spindle taper BT40
Spindle speed 8000rpm
Spindle motor 10HP
Spindle nose to table surface 120-820mm
Spindle center to column front surface 670mm
Cutting feed rate 0~10M/min
Rapid feed of XYZ axes 12M/min
coolant pump 1/4HP
Length x Width x Height 4800 x 2305 x 3025mm
Net weight  4500Kgs

We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
