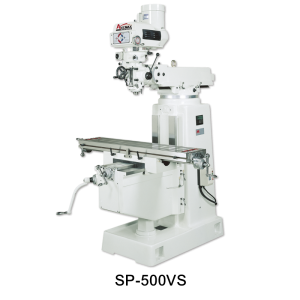

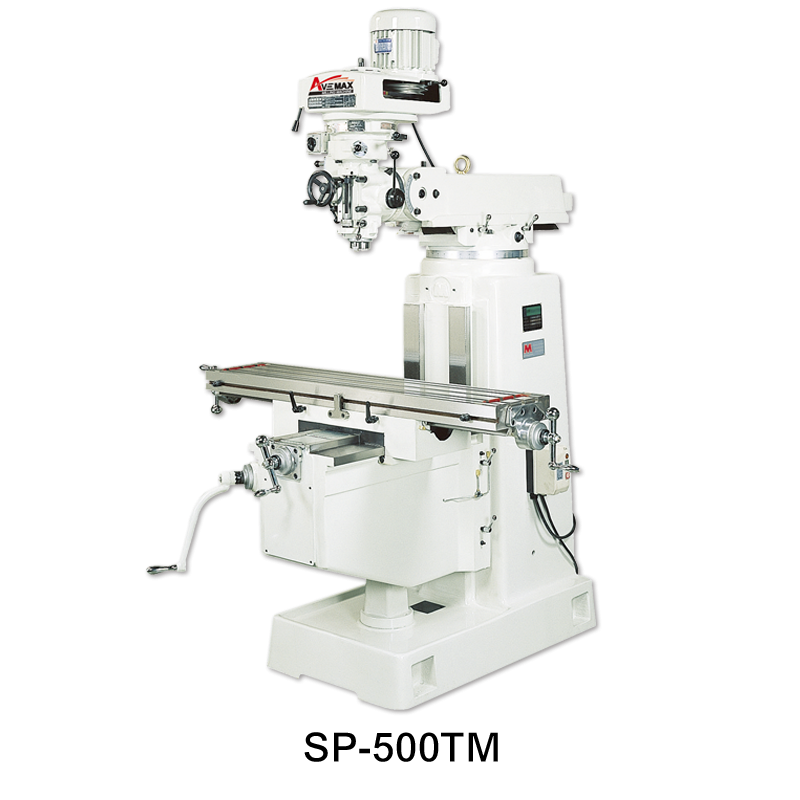

SP-500TM / SP-500VS
- 10”X 54” table
- R8 spindle material SAE4115 (SCM415) with hardened and ground
- Turcite-B on X Y ways, slidways and gibs
- Hardened and ground X Y slideways
- Hardened and ground table with ground T-slots
- Electroless nickel-phosphorus plating process on X and Y leadscrews
- Square ways on Y and Column ways
- Patented FA381 keys are used for vari-speed
- Diameter 1 1/2”(38mm) lifting screw
- Leveling screws and pads on base
- Strict with hand scraping for high precise accuracy.
| Specification | SP-500TM / SP-500VS | |
| Table size | 254x1372mm (10”x54”) | |
| T-slot of table (Q’ty x size) | 3x16mm (3x0.63”) | |
| Longitudinal travel (X axis) | Manual | 870mm (34.3”) |
| Auto | 775mm (30.5”) | |
| Cross travel (Y axis) | 410mm (16”) | |
| Vertical travel of knee (Z axis) | 450mm (18”) | |
| Ram travel | 560mm (22”) | |
| Quill travel | 127mm (5”) | |
| Spindle taper | NST#30/R8 (Opt. NST#40) | |
| Spindle to table nose | 85~535mm (3.3”~21”) | |
| Spindle center to column | 170~730mm (6.6”~28.7”) | |
| Over swivel on turret | 360゜ | |
| Head swivel (R&L) | +/-45゜ | |
| Head tilt (up&down) | +/-45゜ | |
| Spindle motor | 3HP | |
| X axis motor | Option: Power feed | |
| Lifting motor | Nil | |
| Quill feed | 0.04~0.08~0.14 mm / rpm (0.0015” ~ 0.003” ~ 0.006”) | |
| Spindle speed | Step head | 50Hz: 66~2270rpm 60Hz: 80~2720rpm |
| Variable speed head | 50Hz: 50~3750rpm 60Hz: 60~4500rpm |
|
| Overall height | 2262mm (89”) | |
| Overall depth | 2120mm (83.5”) | |
| Overall width | 1840mm (72.4”) | |
| Net weight | 1500Kgs (3360lbs) | |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
