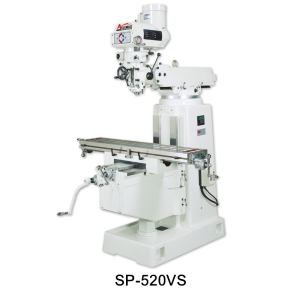

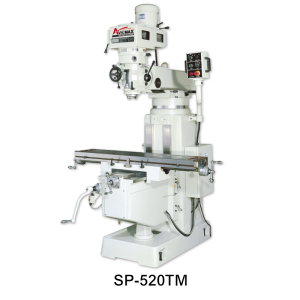

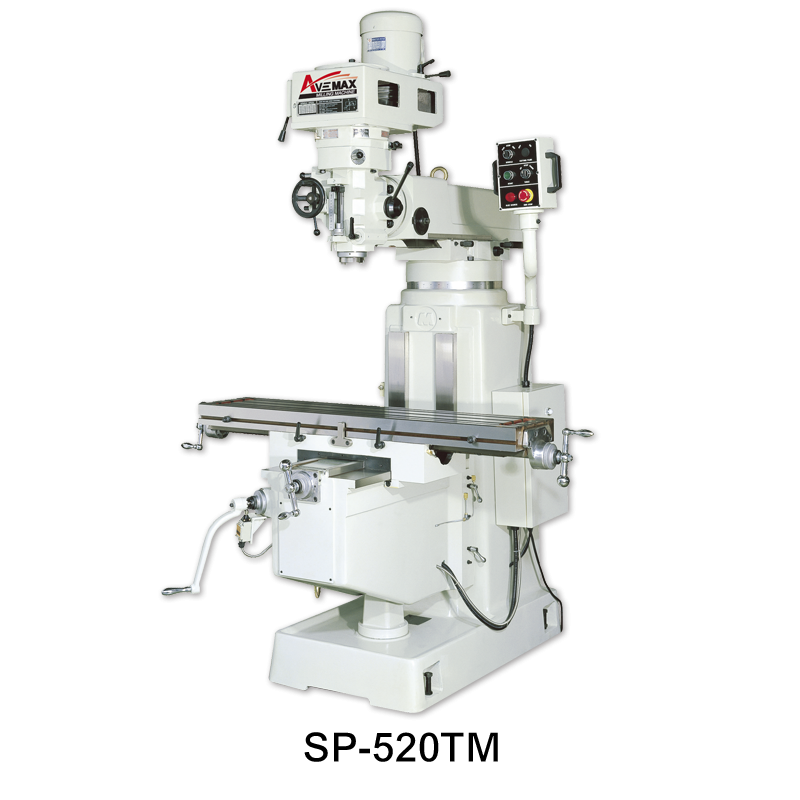

SP-520TM / SP-520VS
- 10”X 54” table
- NST#40 spindle material SAE4115 (SCM415) full piece by hardened and ground
- Turcite-B on X Y ways, slidways and X Y gibs
- Hardened and ground on X Y Z slidways and table
- Electroless nickel-phosphorus plating process on X and Y leadscrews
- Grinding on table T-slot
- Square ways on Y and column ways
- Patented FA381 keys are used for vari-speed head
- Diameter 1 1/2” (38mm) lifting screw
- Lifting motor and electric box
- Strict with hand scraping for high precise accuracy.
Option: 5000 RPM EVS spindle head
- 5HP inverter motor with 5HP inverter drive
- For 5K/5KV, SP-520TM/VS (NST#40)
| Specification | SP-520TM / SP-520VS | |
| Table size | 254x1370mm (10”x54”) | |
| T-slot of table (Q’ty x size) | 3x16mm (3x0.63”) | |
| Longitudinal travel (X axis) | Manual | 870mm (34.3”) |
| Auto | 775mm (30.5”) | |
| Cross travel (Y axis) | 390mm (15”) | |
| Vertical travel of knee (Z axis) | 450mm (18”) | |
| Ram travel | 560mm (22”) | |
| Quill travel | 127mm (5”) | |
| Spindle taper | NST#40 | |
| Spindle to table nose | 85~535mm (3.3”~21”) | |
| Spindle center to column | 178~738mm (7”~29”) | |
| Over swivel on turret | 360゜ | |
| Head swivel (R&L) | +/-45゜ | |
| Head tilt (up&down) | Option | |
| Spindle motor | 5HP | |
| X axis motor | Option: Power feed | |
| Lifting motor | 1HP gear type motor | |
| Quill feed | 0.04~0.08~0.14 mm / rpm (0.0015” ~ 0.003” ~ 0.006”) | |
| Spindle speed | Step head | 50Hz: 54~2875rpm 60Hz: 65~3450rpm |
| Variable speed head | 50Hz: 50~3600rpm 60Hz: 60~4300rpm |
|
| Overall height | 2375mm (93.5”) | |
| Overall depth | 2120mm (83.5”) | |
| Overall width | 1840mm (72.4”) | |
| Net weight | 1600Kgs (3500lbs) | |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
