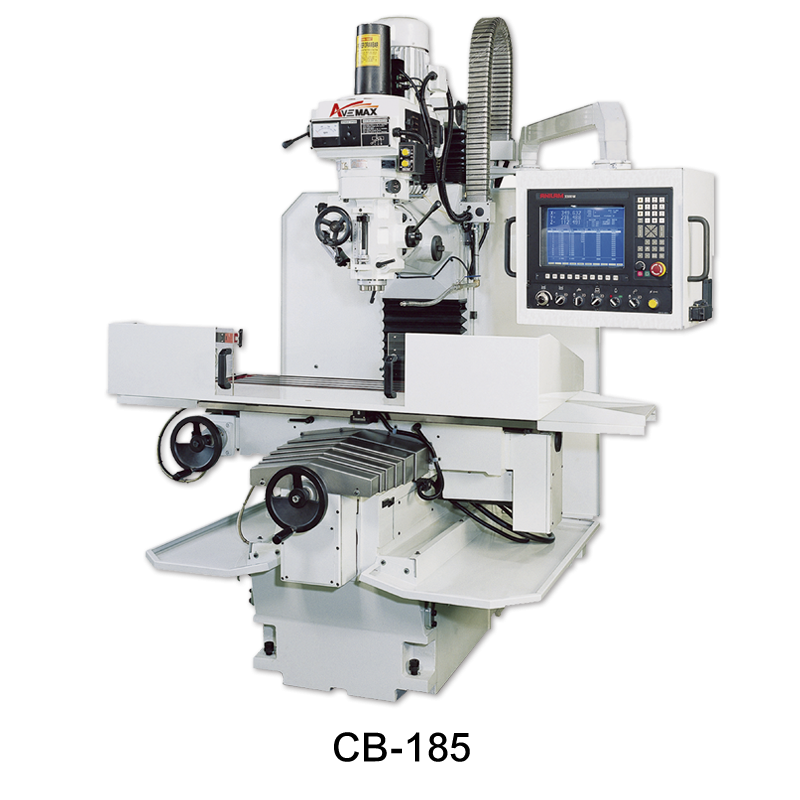

CB-185
- NST#40 spindle with 5HP inverter motor.
- Spindle material is SCM415 full hardened through carbonizing heat treatment.
- Essential castings are made of high grade of Meehanite cast iron, which has been stressed, relieved to provide a rigid machine structure.
- Standard with 10” X 54” table with hardened and ground.
- Table T-slot is precise ground for precise tolerance.
- Precise ballscrews are equipped on X&Y axes.
- X Y slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface.
- XYZ slideways are hardened and ground for wear resistance and excellent longevity.
- 1:2 ratio timing belt pulleys on XY axes to increase drive torque.
| Specification | CB-185 |
| Table Size | 1270 x 305mm |
| T slots of table (number x width) | 3 x 15.875mm |
| Longitudinal travel | 985mm |
| Cross travel | 450mm |
| Vertical travel | 450mm |
| Quill travel | 127mm |
| Spindle nose to table surface | 150~600/67~425mm |
| Head swivel (R&L) | 45° |
| Spindle motor | 5HP (Variable speed) |
| Spindle taper | NST#40 |
| Spindle speed | 75~5000 |
| Quill feed rate | 0.04~0.08~0.14 |
| Spindle to columm surface | 500mm |
| XY feed rates | 0~3000mm/min |
| XY rapid traverse | 5000mm/min |
| Length x Width x Height | 2200 x 1900 x 2600mm |
| Net weight | 2300Kgs |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
