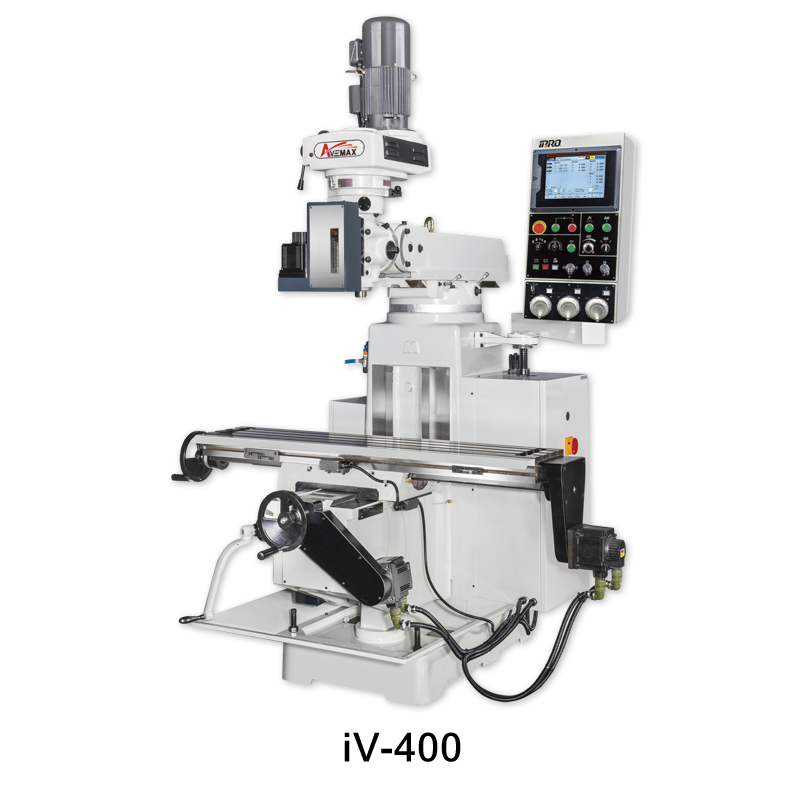

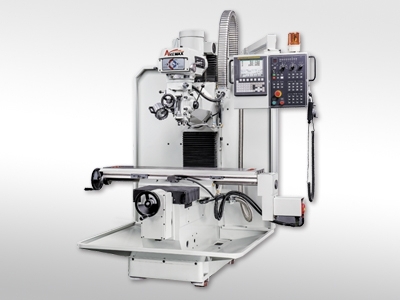

iPRO Vertical Turret Milling Machine - iV-400

iV-400

Spindle material is SCM415 full hardened through carbonizing heat treatment.
NST#30/R8 spindle with 3HP variable speed motor (inverter motor option is available).
Spindle quill drive box is transmitted by ballscrew for better precision.
Essential castings are made of high grade of Meehanite cast iron, which has been stressed and relieved to provide a rigid machine structure.
Standard with 10” X 54” table with hardened and ground.
Table T-slot is precision ground to exact tolerance.
Precision ballscrews are equipped on X&Y axes.
X and Y slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface.
1:2 ratio timing belt pulleys on XY axes to increase drive torque.

iPRO Intelligent Conversational Control System
Features Intelligently integrates the control, machine and person. Optimized HMI + PLC + Motion + COMM. iPRO system enables you to program conventional machining operations right at your machine in an easy programming way. iPRO system was designed for users where manual and automated operation are both useful and needed. Built in functions: parameter memory, visual communication, USB connectivity, coaching program and coordinate adjustment record. Powerful, easy and user-friendly. Great for your daily milling work.
DRO mode Built in DRO mode provides DRO functions for your milling work. With this function, you are no longer have to spend extra money on DRO equipment for your machine.
Programming Program the iPRO by making simple selections and inputting parameters in numbers. Program Storage An internal drive lets you save hundreds of typical programs. A USB port on iPRO is available to plug in a storage device for backing up programs and moving programs between iPRO and computers.
Help pages Help pages are available for you to check different useful information quickly. Learning Even if you have never used a CNC before, you will be able to learn the iPRO in just a few hours. It is easier to operate with an iPRO than to use manual machining methods. You’ll quickly find out having the iPRO will pay off in job satisfaction. Task scheduling You are able to schedule 999 different machining tasks.
CAD/CAM input Easily transfer your 2D CAD/CAM codes into the system by using USB flash drive. Allow you to do milling work by following your 2D CAD/CAM design .

Specification		iV-400
Travel
X/Y/Z travel		842/335/390mm (33"/13"/15")
Spindle nose to table surface		100~506mm (4"~20")
Spindle center to column surface		159~719mm (6.2"~28")
Ram travel		560mm (22")
Table
Table size		1372 x 254mm (54" x 10")
Table T-slot (No. x size)		3 x 16mm (3 x 0.63")
Max. table load		350kgs (771 Lbs)
Spindle
Spindle taper		NST#30/R8
Spindle speed		5000rpm
Quill feed		0.04mm~0.08mm~0.14mm (0.0015"~0.003"~0.006")
Transmission		Variable speed (Opt. inverter)
Quill travel		110mm (4.3")
Over swivel on turret		360゜
Head swivel (R&L)		+/-45゜
Head swivel (Up & down)		+/-45゜
XY feed rate		0-3M/min (0-0.12")
Rapid feed rate XYZ		5M/min (0.2"/min)
Motor
Spindle motor		3HP inverter motor
XYZ motor		1Kw AC servo motor
XYZ transmission		1:2 Belt
Coolant pump		1/8HP
Machine size
Overall width (A)		2720mm (107")
Overall depth (B)		2065mm (81")
Overall height (C)		2270mm (90")
Net weight		1400kgs (3,086 Lbs)
