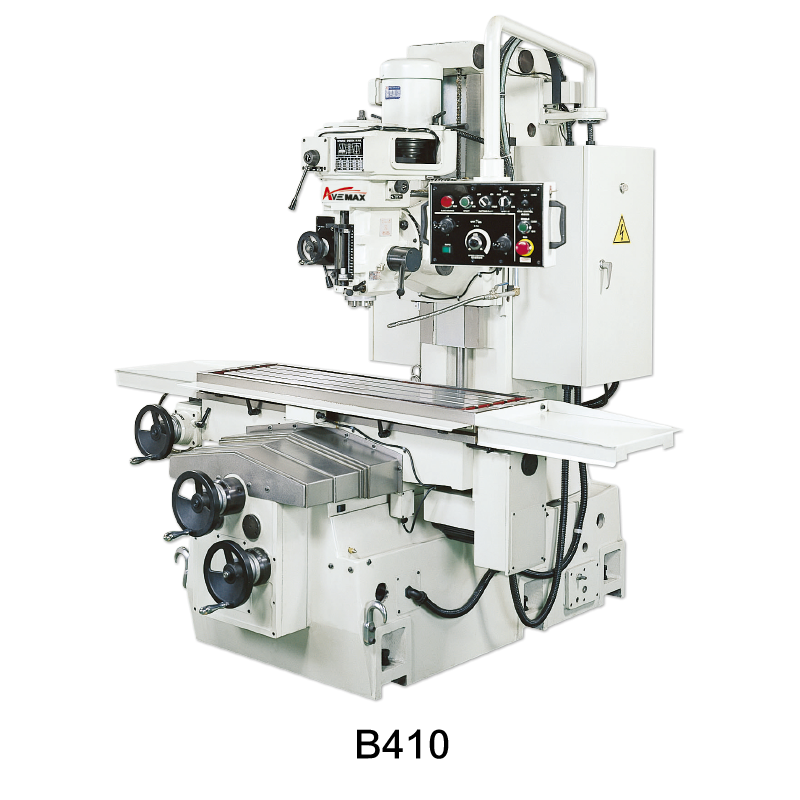

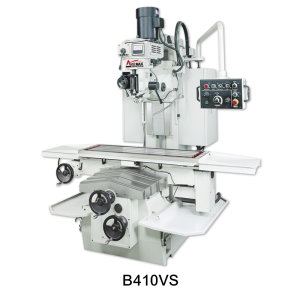

B410 / B410VS
- 5HP strong head can be swiveled 90 degrees right and left for angular machining.
- Quill diameter 110mm(4.3”). NST#40 spindle.
- XY axes high precision ballscrews, Z axis leadscrew (Z axis ballscrew by option).
- Heavy duty saddle length 1200mm (47.2”) support to table.
- Rigid square ways on cross and column.
- Licensed Meehanite casting.
- Hardened and ground on X Y Z slideways and table.
- Turcite-B coated on X Y Z axes slideways and gibs.
- Counter-balance weight device for milling head.
- Telescopic steel cover to protect the sildeways and ballscrew from dust.
| Model | X/Y/Z Auto feed |
| B410-FP / B410VS-FP | XYZ Variable speed by inverter system |
| B410-SP / B410VS-SP | XYZ Variable speed by servo motor |
Standard Accessories:
| Standard Accessories | For |
| Tool & Tool box | All machine |
| Leveling screws & pads | All machine |
| Auto lubrication pump | B185/B410 |
| Coolant system & chip tray | B185/B410 |
| Electrical box & Lifting motor | B185/B410 |
| Rubber chip cover (Front & Rear) | B180 |
| Rear rubber cover | B185/B410 |
| Telescopic cover (metal) in front of saddle | B185/B410 |
| XY Ballscrew | B185/B410 |
| Quartz work light | B185/B410 |
| Specification | B410 / B410VS | |
| Table | ||
| Table Size |
1270 x 380 mm |
|
| T slots of table (Qty x size) |
3 x 16 mm |
|
| Longitudinal travel (Manual) | 1000 mm | |
| Longitudinal travel (Auto) | 1000 mm (Option: 1200 mm) | |
| Cross travel | 500 mm | |
| Vertical travel | 500 mm | |
| Spindle nose to table surface (D) | 140~600 mm | |
| Spindle | ||
| Spindle taper | NST#40 | |
| Spindle speed (rpm) | Step head | 50 Hz : 62.5~3000rpm |
| 60 Hz : 75~3600rpm | ||
| Variable speed head | 50Hz: 40~3000rpm 60Hz: 50~3600 | |
| Stroke of quill on turret | 140 mm | |
| Quill feeds (mm/rpm) | 0.035 mm~0.07 mm~0.14 mm | |
| Head swivel (R&L) | 45o | |
| Spindle to column (E) | 490mm | |
| Feed Rate | ||
| X Y Z axes feed rates (mm/min) | 0~1800 mm (0~7 1'') Adjustable Steplessly | |
| Rapid traverse X Y axes (mm/min) | 1800 | |
| Rapid traverse of Z axis (mm/min) | 900 | |
| Motor | ||
| Spindle drive motor | 5HP | |
| Drive on X axis |
1HP servo motor for B410(VS)-SP |
|
| Drive on Y axis | ||
| Drive on Z axis | ||
| Coolant pump | 1/6HP | |
| Length x Width x Height (A x B x C) | 2250 mm x 2050 mm x 2090 mm | |
| Net weight | 3100 gs | |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
