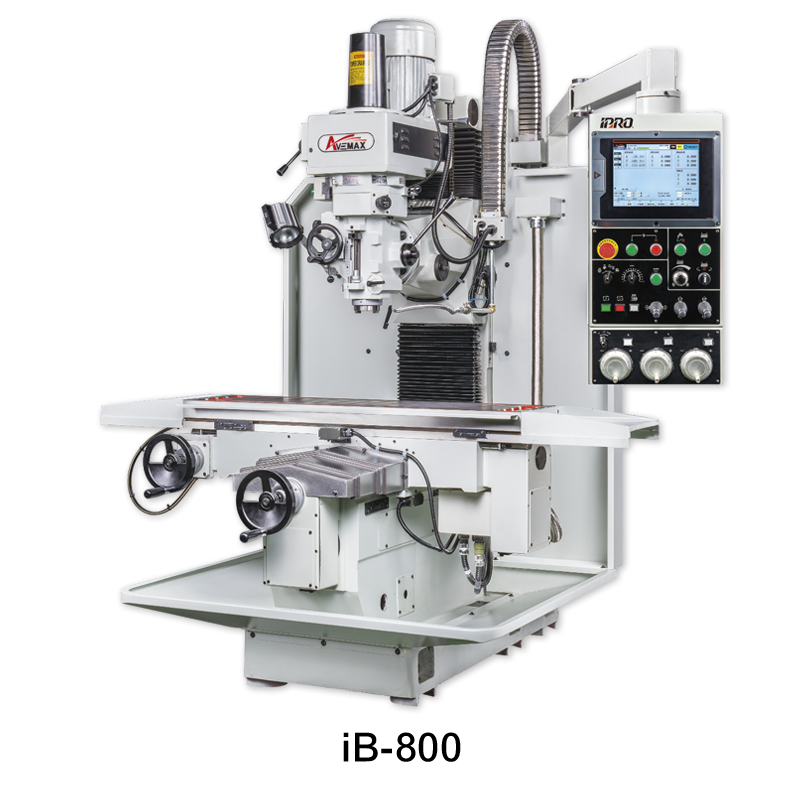

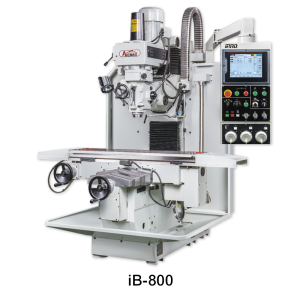

iB-800

  • NST#40 spindle with 5HP inverter motor.
  • Spindle material is SCM415 full hardened through carbonizing heat treatment.
  • Essential castings are made of high grade of Meehanite cast iron, which has been stressed, relieved to provide a rigid machine structure.
  • Standard with 10” X 54” table with hardened and ground.
  • Table T-slot is precise ground for precise tolerance.
  • Precise ballscrews are equipped on X&Y axes.
  • X Y slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface.
  • XYZ slideways are hardened and ground for wear resistance and excellent longevity.
  • 1:2 ratio timing belt pulleys on XY axes to increase drive torque.

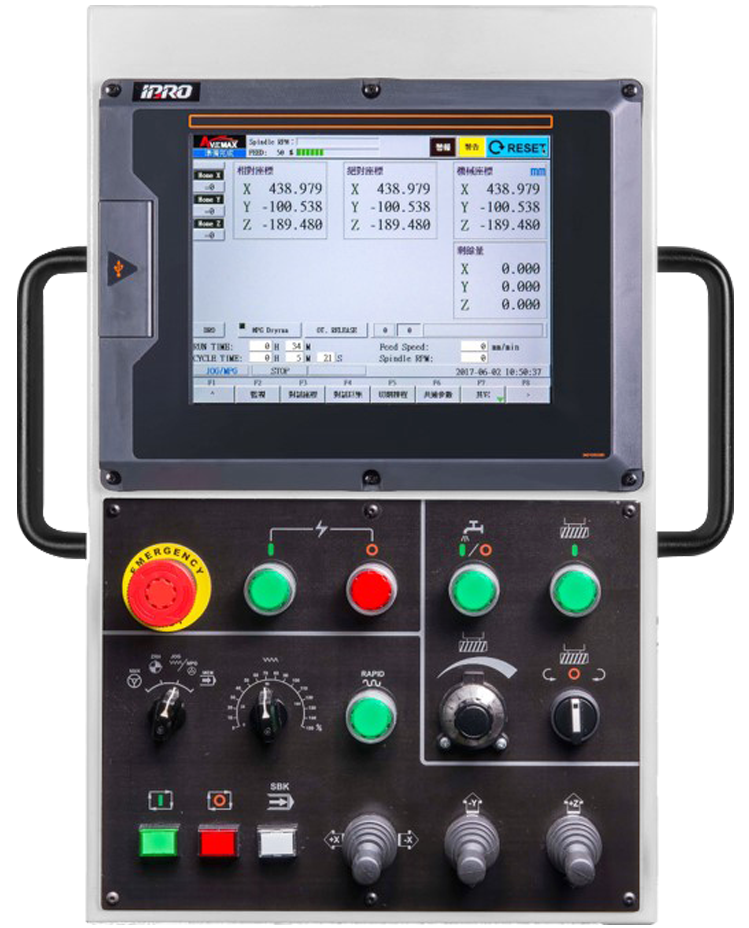

iPRO Intelligent Conversational Control System

Features

  • Intelligently integrates the control, machine and person.
  • Optimized HMI + PLC + Motion + COMM.
  • iPRO system enables you to program conventional machining operations right at your machine in an easy programming way.
  • iPRO system was designed for users where manual and automated operation are both useful and needed.
  • Built in functions: parameter memory, visual communication, USB connectivity, coaching program and coordinate adjustment record.
  • Powerful, easy and user-friendly. Great for your daily milling work.

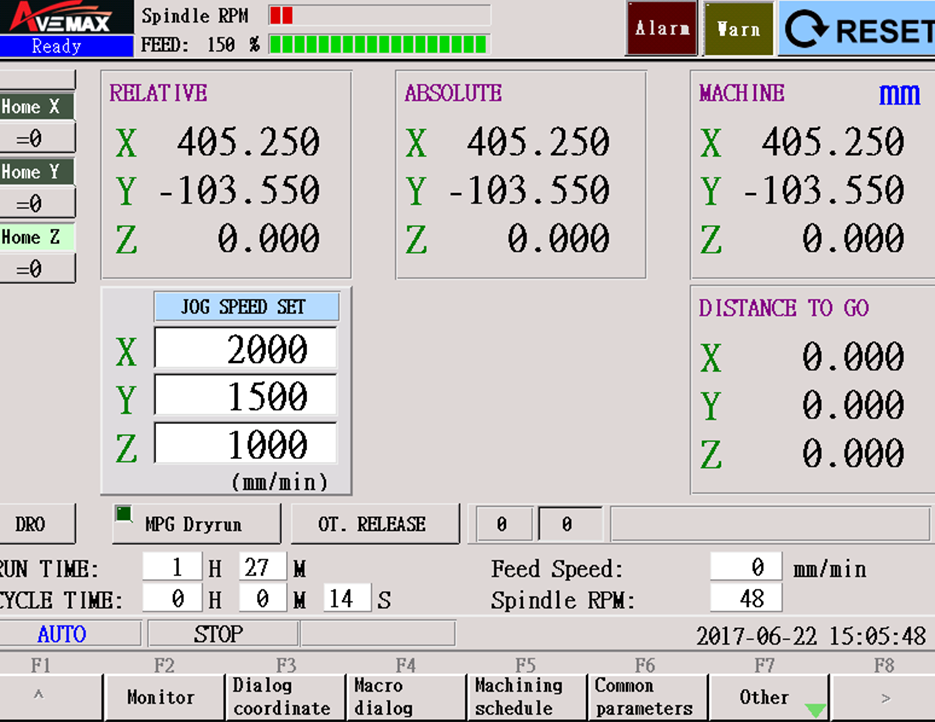

DRO mode

  • Built in DRO mode provides DRO functions for your milling work. With this function, you are no longer have to spend extra money on DRO equipment for your machine.

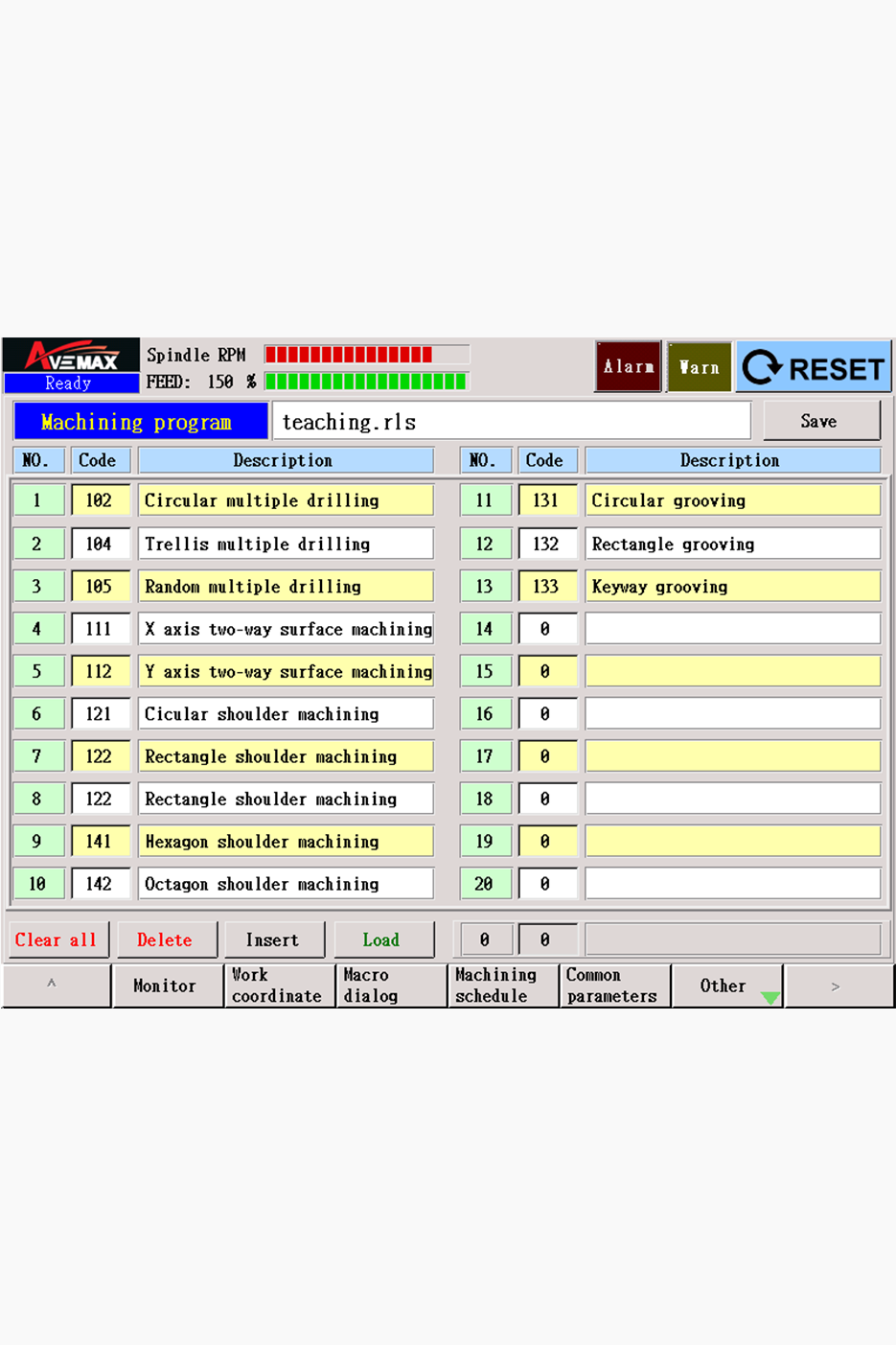

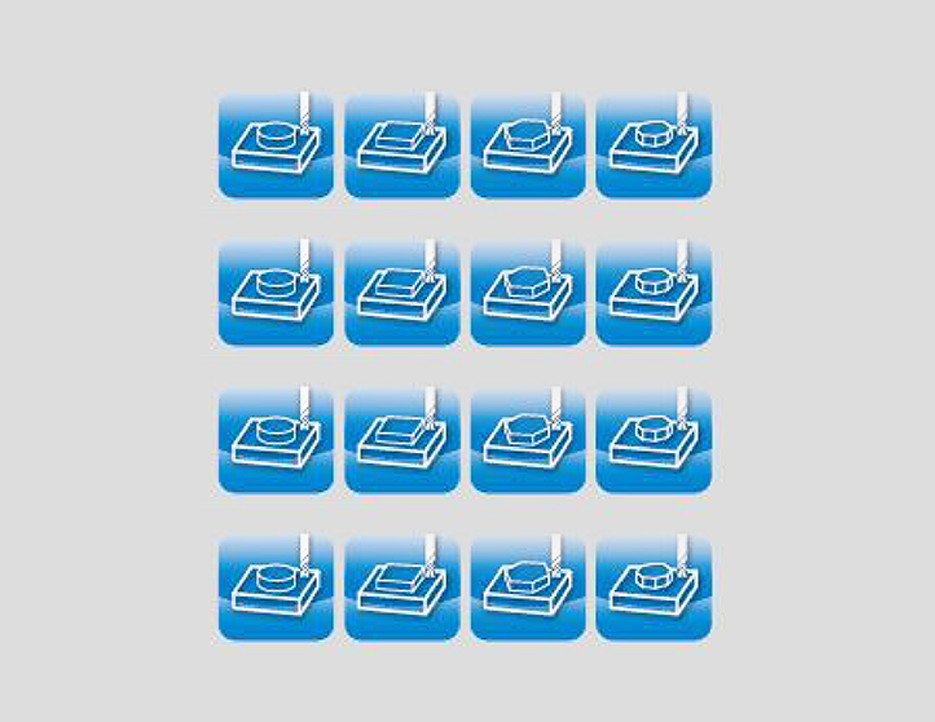

Programming

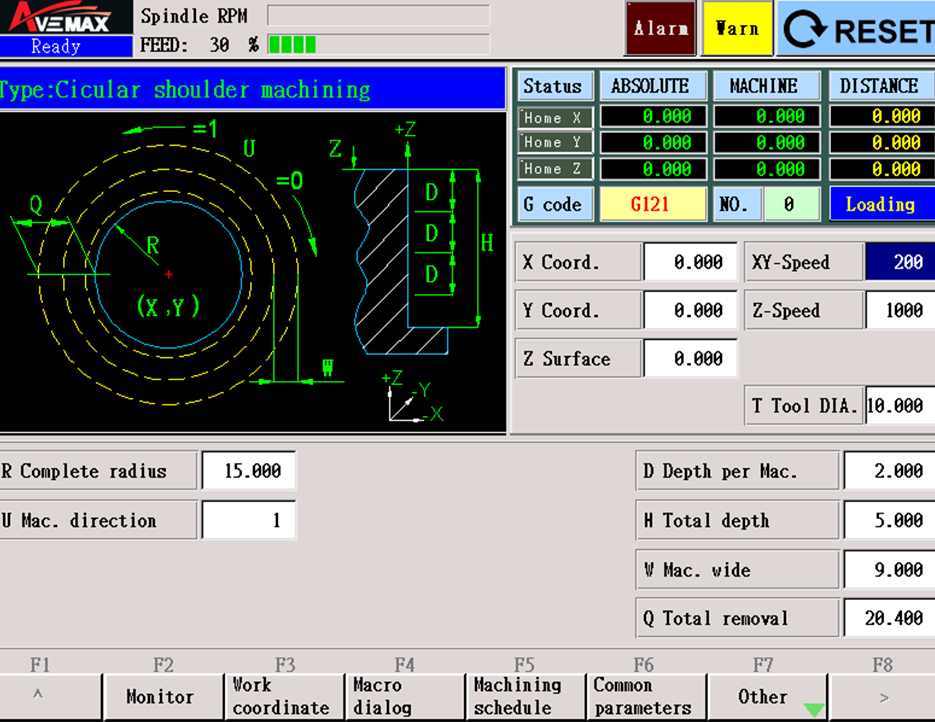

  • Program the iPRO by making simple selections and inputting parameters in numbers.

Program Storage

  • An internal drive lets you save hundreds of typical programs. A USB port on iPRO is available to plug in a storage device for backing up programs and moving programs between iPRO and computers.


Help pages

  • Help pages are available for you to check different useful information quickly.

Learning

  • Even if you have never used a CNC before, you will be able to learn the iPRO in just a few hours. It is easier to operate with an iPRO than to use manual machining methods. You’ll quickly find out having the iPRO will pay off in job satisfaction.

Task scheduling

  • You are able to schedule 999 different machining tasks.

CAD/CAM input

  • Easily transfer your 2D CAD/CAM codes into the system by using USB flash drive.

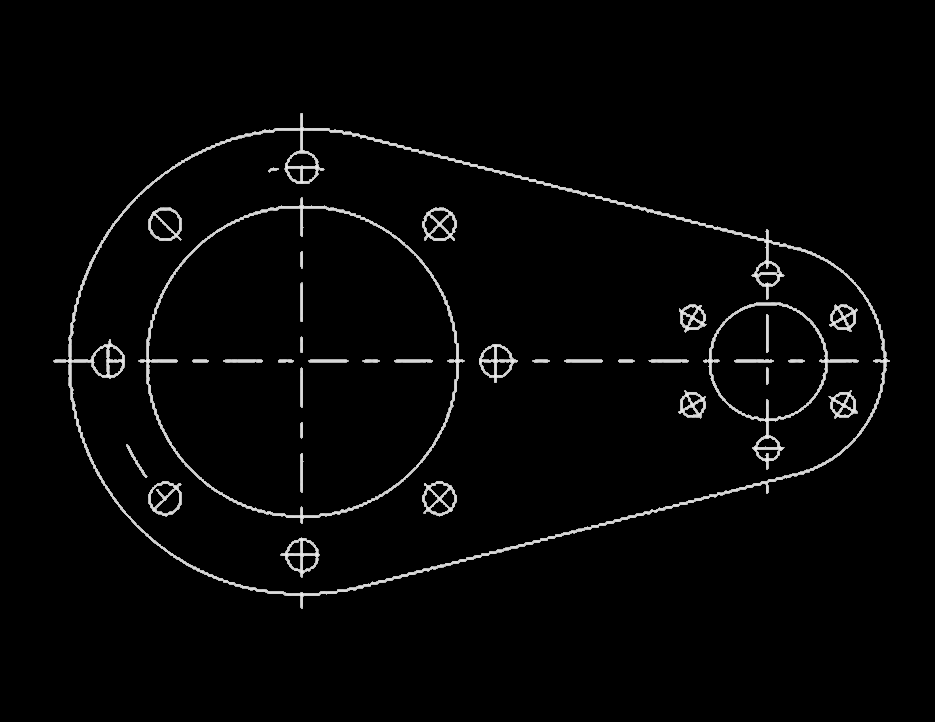

  • Allow you to do milling work by following your 2D CAD/CAM design .
Specification iB-800
Travel
X/Y/Z travel 850/500/450mm
Spindle nose to table surface 100~530mm
Spindle center to column surface 565mm
Table
Table size 1270 x 305mm
Table T-slot (No. x size) 3 x 16mm
Max. table load (kgs) 500kgs
Spindle
Spindle taper NST#40
Spindle speed (RPM) 5000RPM (60Hz)
Quill feed 0.04/0.08/0.14mm
Transmission Variable speed (inverter)
Quill travel 127mm
Head swivel (R&L) +/- 45
Rapid feed rate XYZ (m/min) 12m/min
Motor
Spindle motor 5HP
XYZ motor 1Kw AC servo motor
XYZ transmission 1:2 Belt
Coolant pump 1/6HP
Machine size
Overall width (A) 1550mm
Overall depth (B) 1380mm
Overall height (C) 2030mm
Net weight  2300kgs

We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
