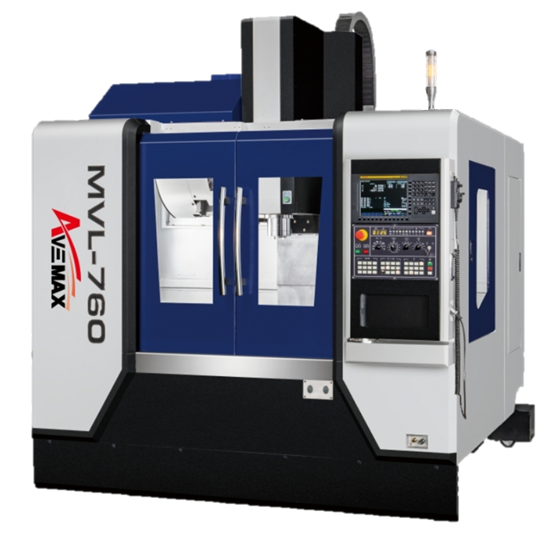

MVL-760

  • MEEHANITE licensed castings are annealed and stress relieved to ensure maximum precision and vibration absorption.
  • Linear guideways provide fast and smooth movements to ensure excellent machining results and high accuracy.
  • Axis motors are directly coupled with ball screws, featuring highly efficient motion control, fast response, and low noise.
  • Every contact sliding surface is applied with Turcite-B that maximizes the durability of slideways and features optimum damping coefficient. The mating surfaces are precision hand scraped to increase the flatness and improve geometric accuracy of the whole assembly.
  • Telescopic steel way covers on three axes to protect ways and ballscrews from chips and coolant.

Specification

MVL-760

TABLE
Table size 915 x 400mm
T-slot of table (size x Q’ty) 14 x 3mm
Max. table load 440Kgs
TRAVEL
X axis 760mm
Y axis 406mm
Z axis 508mm
Spindle nose to table surface 102~610mm
FEED RATE
Rapid feedrate X/Y/Z 48/48/36M/min
Cutting feedrate X/Y/Z 10/10/10M/min
SPINDLE
Spindle taper BT40
Spindle speed (RPM) 10000RPM
Transmission Direct drive
Spindle motor 7.5/11KW(15HP)
TOOL MAGAZINE
ATC type/ capacity Arm type/24
Max. tool diameter Full: 80mm / Next empty: 150mm
Max. tool length 300mm
Max. tool weight 7Kgs
OTHER ITEMS
Tank capacity 220L
Chip conveyor Screw type
Lubrication system/ oil tank capacity Volumetric/4.09L
Air source 0.6Mpa
Power requirement 20KVA
Machine floor space (WxDxH) 3654x3543x2592mm
Machine net weight (approx.) 2900Kgs

We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
