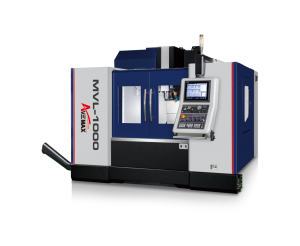

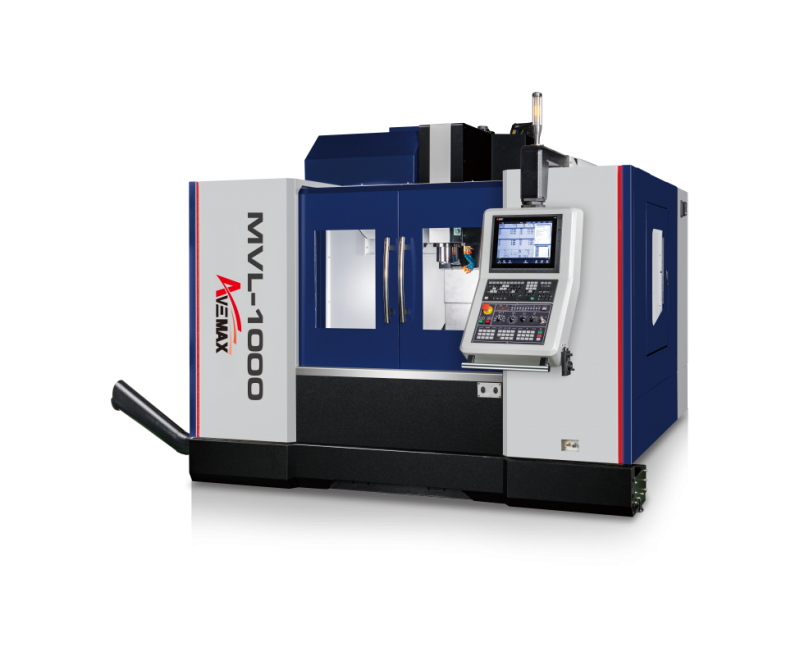

MVL-1000
- MEEHANITE licensed castings are annealed and stress relieved to ensure maximum precision and vibration absorption.
- Linear guideways provide fast and smooth movements to ensure excellent machining results and high accuracy.
- Axis motors are directly coupled with ball screws, featuring highly efficient motion control, fast response, and low noise.
- Every contact sliding surface is applied with Turcite-B that maximizes the durability of slideways and features optimum damping coefficient. The mating surfaces are precision hand scraped to increase the flatness and improve geometric accuracy of the whole assembly.
- Telescopic steel way covers on three axes to protect ways and ballscrews from chips and coolant.
|
Specification |
MVL-1020 |
| TABLE | |
| Table size | 1120 x 600mm |
| T-slot of table (size x Q’ty) | 18 x 5mm |
| Max. table load | 800Kgs |
| TRAVEL | |
| X axis | 1020mm |
| Y axis | 610mm |
| Z axis | 610mm |
| Spindle nose to table surface | 150~760mm |
| FEED RATE | |
| Rapid feedrate X/Y/Z | 36/36/24M/min |
| Cutting feedrate X/Y/Z | 10/10/10M/min |
| SPINDLE | |
| Spindle taper | BT40 |
| Spindle speed (RPM) | 8000RPM |
| Transmission | Belt drive |
| Spindle motor | 7.5/11KW(15HP) |
| TOOL MAGAZINE | |
| ATC type/ capacity | Arm type/24 |
| Max. tool diameter | Full: 80mm / Next empty: 150mm |
| Max. tool length | 300mm |
| Max. tool weight | 7Kgs |
| OTHER ITEMS | |
| Tank capacity | 400L |
| Chip conveyor | Screw type |
| Lubrication system/ oil tank capacity | Volumetric/4.09L |
| Air source | 0.6Mpa |
| Power requirement | 20KVA |
| Machine floor space (WxDxH) | 4555x3830x2703mm |
| Machine net weight (approx.) | 5000Kgs |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
