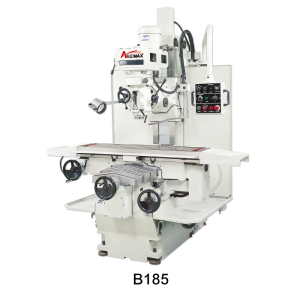

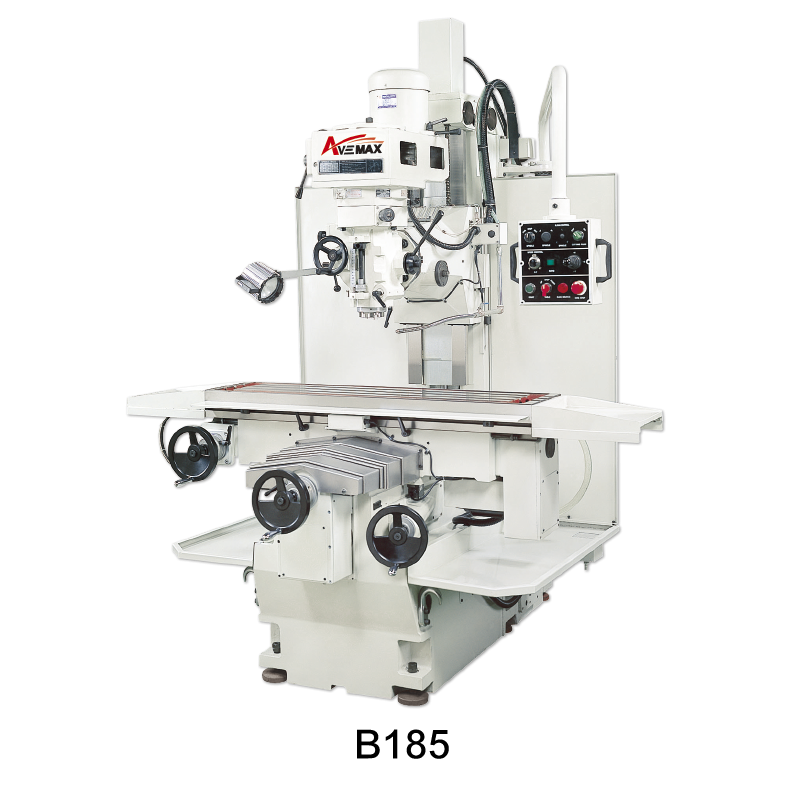

B185 / B185VS
- X auto feed vari-speed by servo motor (Y auto feed vari-speed by AC servo motor by option).
- High precision ballscrews on XY axes.
- Heavy duty widen saddle length 1016mm (40”) full support to table.
- Rigid square ways on X and Y.
- Licensed Meehanite casting.
- Hardened and ground on X Y Z slideways and table.
- Turcite-B coated on X Y Z axes slideways and gibs.
- Head can be tilted 90 degrees right and left for angular machining.
- Counter-balance weight device for milling head.
- Telescopic steel cover to protect slideways and ballscrew from dust.
- Counter-balance weight device for milling head.
Standard Accessories:
| Standard Accessories | For |
| Tool & Tool box | All machine |
| Leveling screws & pads | All machine |
| Auto lubrication pump | B185/B410 |
| Coolant system & chip tray | B185/B410 |
| Electrical box & Lifting motor | B185/B410 |
| Rubber chip cover (Front & Rear) | B180 |
| Rear rubber cover | B185/B410 |
| Telescopic cover (metal) in front of saddle | B185/B410 |
| XY Ballscrew | B185/B410 |
| Quartz work light | B185/B410 |
| Specification | B185 / B185VS | |
| Table | ||
| Table Size |
1270 x 305 mm |
|
| T slots of table (Qty x size) |
3 x 16 mm |
|
| Longitudinal travel (Manual) | 840 mm | |
| Longitudinal travel (Auto) | 840 mm (Option: 1000 mm) | |
| Cross travel | 500 mm | |
| Vertical travel | 450 mm | |
| Spindle to table nose (D) | 90~540 mm | |
| Spindle | ||
| Spindle taper | NST#40 | |
| Spindle speed (rpm) | Step head | 50 Hz : 54~2875rpm |
| 60 Hz : 65~3450rpm | ||
| Variable speed head | 50 Hz : 50~3600rpm | |
| 60 Hz : 60~4300rpm | ||
| Stroke of quill on turret | 127mm | |
| Quill feeds (mm/rpm) | 0.04 mm~0.08 mm~0.14 mm | |
| Head swivel (R&L) | 45o | |
| Spindle to column (E) | 565 mm | |
| Feed Rate | ||
| X Y Z axes feed rates (mm/min) | 0-1800 mm (0 - 7 1") Adjustable Steplessly | |
| Rapid traverse X Y axes (mm/min) | 1800 | |
| Rapid traverse of Z axis (mm/min) | 900 | |
| Motor | ||
| Spindle drive motor | 5HP | |
| Drive on X axis | 1HP Servo motor | |
| Drive on Y axis | Servo motor by option | |
| Drive on Z axis | 1/2HP Lifting motor | |
| Coolant pump | 1/8HP | |
| Length x Width x Height (A x B x C) | 2230 mm x 1750 mm x 2050 mm | |
| Net weight | 2600kgs | |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
