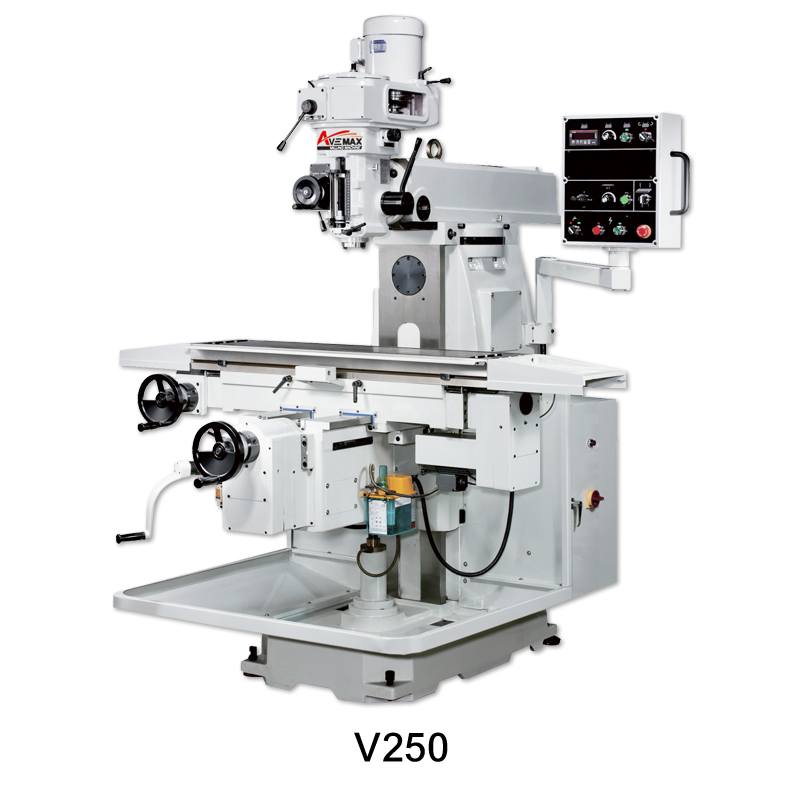

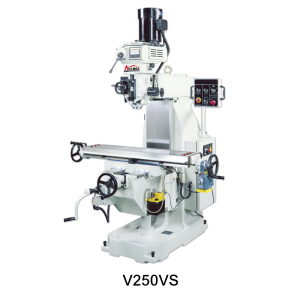

V250 / V250VS
- Meehanite casting with annealing and stress relieving treatment.
- Rubber wipers installed on all slidways (column, ram and knee).
- Square way designed on Y and column slideways.
- Longer saddle ensures working stability.
- Turcite-B coated on X and Y ways.
- Precision ballscrews on X and Y ways.
- 5HP heavy duty head, and Hi-Low speed changed by gear transmission (without timing belt).
- Inverter or servo motor on X and Y with variable speed change, providing high working efficiency.
- Electromagnetic clutch on X and Y, protecting workpieces or tools from damage.
Model Specification:
| Description | 5HP horizontal spindle motor | XY inverter motor | XY servo motor |
|
V250-FP |
Ο | ||
|
V250VS-FP |
Ο | ||
|
V250-SP |
Ο | ||
|
V250VS-SP |
Ο | ||
|
VH250VS-FP |
Ο | Ο | |
|
VH250VS-SP |
Ο | Ο |
| Specification | V250 / V250VS | |
| Table size | 305x1270mm (12”x50”) | |
| T-slot of table (Q’ty x size) | 3x16mm (3x0.63”) | |
| Longitudinal travel (X axis) | Manual | Nil |
| Auto | 880mm (34.6”) | |
| Cross travel (Y axis) | 385mm (15.2”) | |
| Vertical travel of knee (Z axis) | 450mm (18”) | |
| Ram travel | 600mm (24”) | |
| Quill travel | 140mm (5.5”) | |
| Spindle taper | NST#40 | |
| Spindle to table nose | 130~580mm (5”~22.8”) | |
| Spindle center to column | 185~685mm (7.3”~27”) | |
| Head swivel (R&L) | +/-45゜ | |
| Spindle motor | 5HP | |
| X axis motor | 1/2HP | |
| Lifting motor | 1HP lifting motor | |
| Coolant pump | 1/6HP | |
| Quill feed | 0.035~0.007~0.14 mm/rpm (0.0014” ~ 0.003” ~ 0.006”) | |
| Spindle speed | Step head | 50Hz: 62.5~3000rpm 60Hz: 75~3600rpm |
| Variable speed head | 50Hz: 40~3000rpm 60Hz: 50~3600rpm |
|
| XY cutting feed | 1.5M/min | |
| XY rapid traverse | 3M/min | |
| Overall height | 2550mm (100”) | |
| Overall depth | 2150mm (85”) | |
| Overall width | 1970mm (78”) | |
| Net weight | 2500Kgs (5512lbs) | |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
