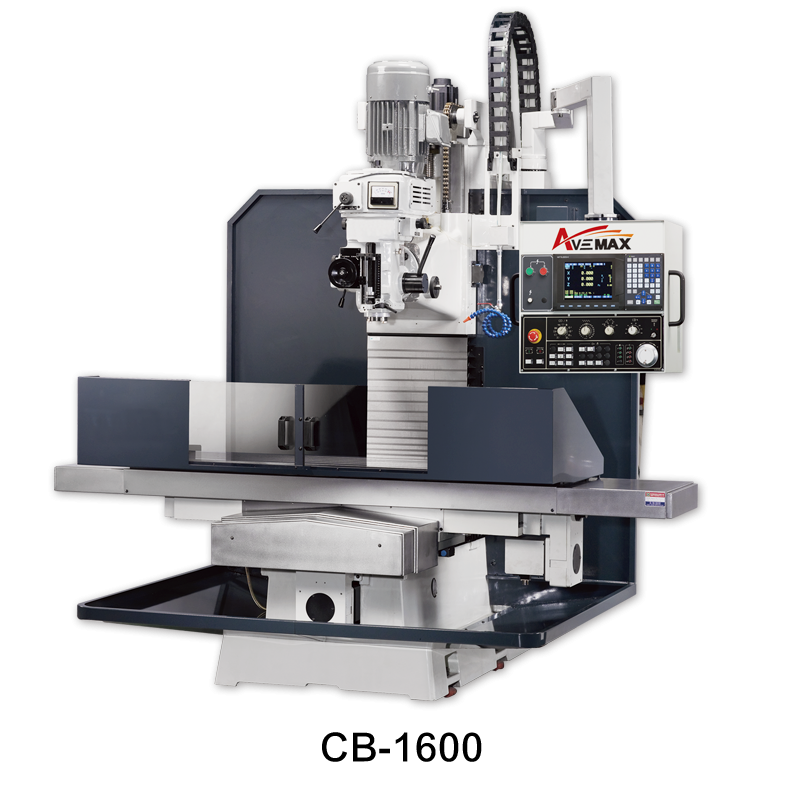

CB-1600
- Strong back gear transmutation instead of timing belt for Hi-Low speed.
- NST#40 spindle with 5HP inverter motor.
- Headstock is transmitted by strong back gears instead of timing belt for Hi-Low speeds.
- Spindle material SCM415 (SAE4115) fully hardened &precision ground.
- High grade of Meehanite cast iron is used on column, saddle, base and table, which are stressed relieved to avoid any distortion.
- Dovetail design on X slideway, and box way construction on YZ slideways.
- Precise ballscrews are equipped on X and Y axes. X and Y slideways and gibs are coated with Turcite-B to provide smooth and wear resistant surface.
- XYZ slideways, table and T-slot are hardened and ground for wear resistance and excellent longevity.
- 1:2 ratio timing belt pulleys on XYZ axes to increase drive torque.
- YZ slideways are protected by high grade steel covers.
| Specification | CB-1600 |
| Table Size | 2200 x 500mm |
| T slots of table (number x width) | 5 x 18mm |
| Longitudinal travel | 1600mm |
| Cross travel | 700mm |
| Vertical travel | 700mm |
| Quill travel | 140mm |
| Spindle nose to table surface | 85~585mm |
| Head swivel (R&L) | 45° |
| Spindle motor | 5HP inverter motor |
| Spindle taper | NST#40 |
| Spindle speed | 3600rpm |
| Spindle speed | 0.035~0.07~0.14mm/min |
| Spindle to columm surface | 670mm |
| Cutting feed rate | 10M/min |
| Rapid feed of XYZ | 12M/min |
| Length x Width x Height | 4800 x 2300 x 2610mm |
| Net weight | 4500Kgs |
We reserve the right to modify and improve the specification without notice. The specification shown above is for reference only.
